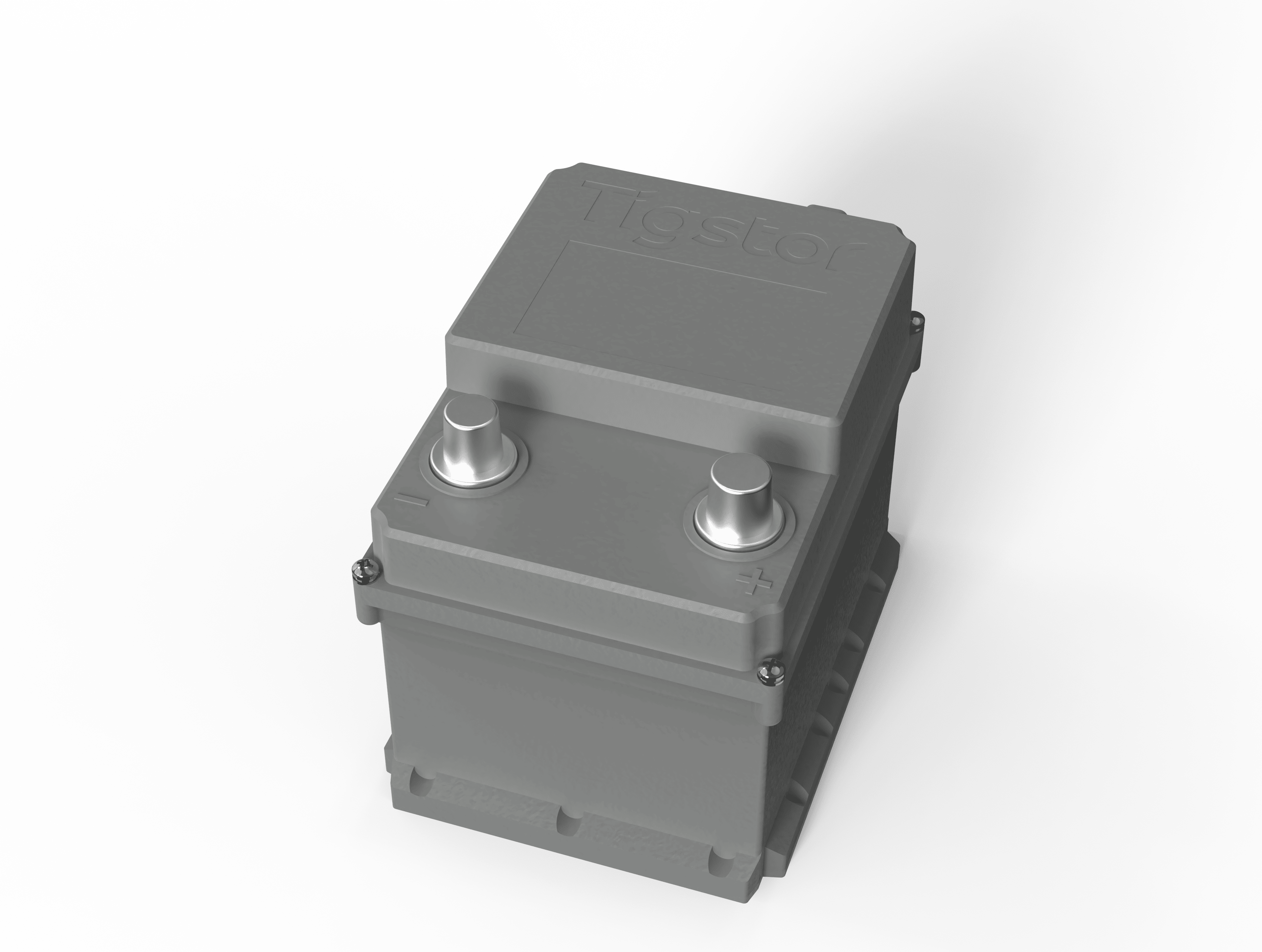

12V 20Ah Horizontal Energy Storage System
Product Type:
Supercapacitor Module
Smart Storage Solutions
12V 20Ah
Horizontal Energy Storage System
Product Features
Wide Operating Temperature Range
Full temperature range adaptation from -40℃ to 65℃, with ultra-wide operating temperature range, stable discharge in low temperature environments, covering all operating conditions of the vehicle.
High Safety & Reliability
Automotive-grade safety protection with multiple safety redundancy designs, compliant with ASIL B(D) functional safety requirements, to comprehensively guarantee driving safety.
Ultra-long Cycle Life
Over 8000 cycles under 25℃ operating conditions with capacity retention rate ≥ 80%, and full life cycle cost is far lower than that of lead-acid batteries.
Lightweight and Horizontal Design
Lightweight and horizontal design, with complete machine weight ≤ 3.7kg and 77.5mm ultra-thin body, perfectly adapts to the flat space layout of the vehicle with high installation flexibility.
Intelligent Automotive-Grade Interaction
Intelligent automotive-grade interaction, supports CAN/CANFD bus communication, reports cell status in real time, and seamlessly connects to the vehicle battery management system (BMS).
Technical Specifications
|
Basic product information |
Parameter |
| Nominal Capacity |
20Ah |
|
Nominal Voltage |
12.8V |
| ESR |
≤6.5mΩ |
|
Cold Cranking Amps |
440 A |
| Pack Weight |
4.5kg |
|
Protection class |
IP 67 |
|
Dimensions |
246mm*100mm*149mm |
|
Operating Temperature Range |
-40℃~+65℃ |
|
Storage Temperature Range |
-20℃ ~ +45℃ |
