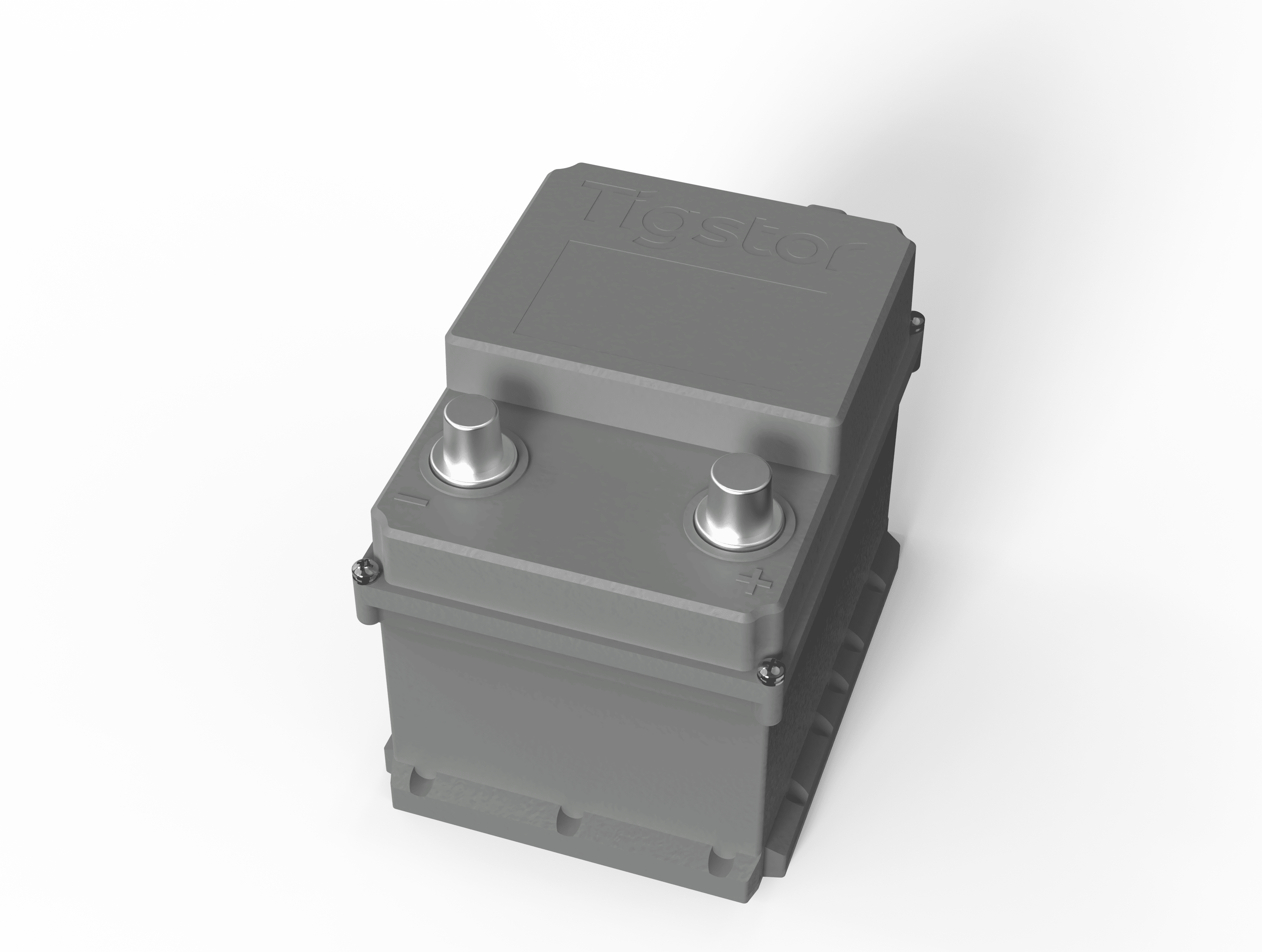

12V 20Ah Vertical Energy Storage System
Product Type:
Supercapacitor Module
Smart Storage Solutions
12V 20Ah
Vertical Energy Storage System
Product Features
Wide Operating Temperature Range
Stable performance from -40℃ to +65℃ for harsh environments, no performance degradation under extreme high and low temperature environments, adapting to various harsh on-board operating conditions.
High Safety & Reliability
High-safety automotive-grade standards, with multiple safety redundancy designs, compliant with ASIL B(D) functional safety requirements, and adapting to on-board safety specifications.
Ultra-long Cycle Life
Long service life and high reliability: over 8000 cycles under 25℃ operating conditions, maintenance-free, which greatly reduces after-sales replacement costs.
Compact Vertical Layout
Compact vertical layout with 4x1 cell stacked design, minimal installation volume, perfectly adapts to the narrow installation space of the vehicle with high space utilization rate.
Highly Integrated and Monolithic Design
Highly integrated and monolithic design, with complete machine weight ≤ 4kg, integrates cells, BMS and protective structure into one unit, ready to use out of the box, and supports CAN/CANFD bus communication.
Technical Specifications
|
Basic product information |
Parameter |
| Nominal Capacity |
20Ah |
|
Nominal Voltage |
12.8V |
| ESR |
≤6.5mΩ |
|
Cold Cranking Amps |
440 A |
| Pack Weight |
4.5kg |
|
Protection class |
IP 67 |
|
Dimensions |
246mm*100mm*149mm |
|
Operating Temperature Range |
-40℃~+65℃ |
|
Storage Temperature Range |
-20℃ ~ +45℃ |
