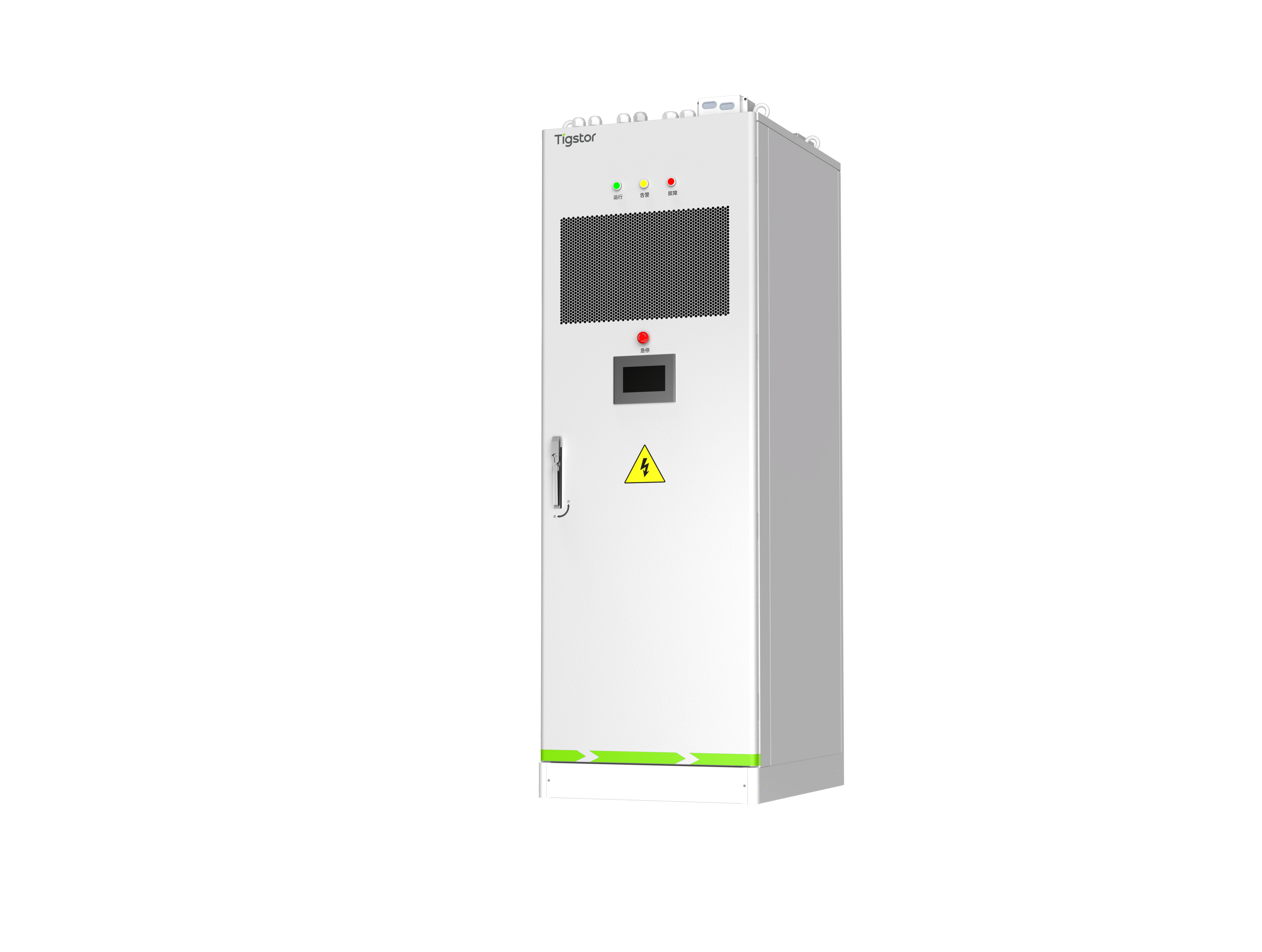

Product Features
Ultra-wide Operating Temperature
Operates stably from -40℃ to +65℃, adaptable to harsh outdoor and industrial scenarios.
Low Internal Resistance & High Response
Ultra-low DC internal resistance enables millisecond high-power response for efficient grid regulation.
High Safety & Reliable Protection
IP41 enclosure rating plus sufficient voltage margin ensures safe and stable long-term operation.
Active Cell Balancing
Built-in active balancing maintains consistent cell status, extending overall system service life.
Easy Integration & Maintenance
Standard cabinet size, universal LAN/RS485 communication, and front-access only for simple upkeep.
Technical Specifications
|
TIG-5E300P109R02 |
TIG-5E600P054R51 |
TIG-5E600P081R81 |
|
|
Nominal Voltage |
300V |
600V | 600V |
|
Nominal Energy |
0.8kWh |
1.67kWh |
2.52kWh |
|
ESR |
≤6 .66m Ω |
≤13.31m Ω |
≤8.875m Ω |
|
Operating Temperature |
-40 ℃~+65 ℃ |
-40 ℃~+65 ℃ |
-40 ℃~+65 ℃ |
|
Storage Temperature |
-40 ℃~+70 ℃ |
-40 ℃~+70 ℃ |
-40 ℃~+70 ℃ |
|
Operating Ambient Humidity |
≤85%RH |
≤85%RH |
≤85%RH |
|
Storage Ambient Humidity |
≤75%RH |
≤75%RH |
≤75%RH |
|
Dimension |
800mm(W)×1000mm(D) ×2400mm(H) |
800mm(W)×1000mm(D) ×2400mm(H) |
800mm(W)×1000mm(D) ×2400mm(H) |
| Weight |
≈0.9T |
≈1.3T |
≈2.2T |
|
Cabinet Ingress Protection Rating |
IP41 |
IP41 |
IP41 |
