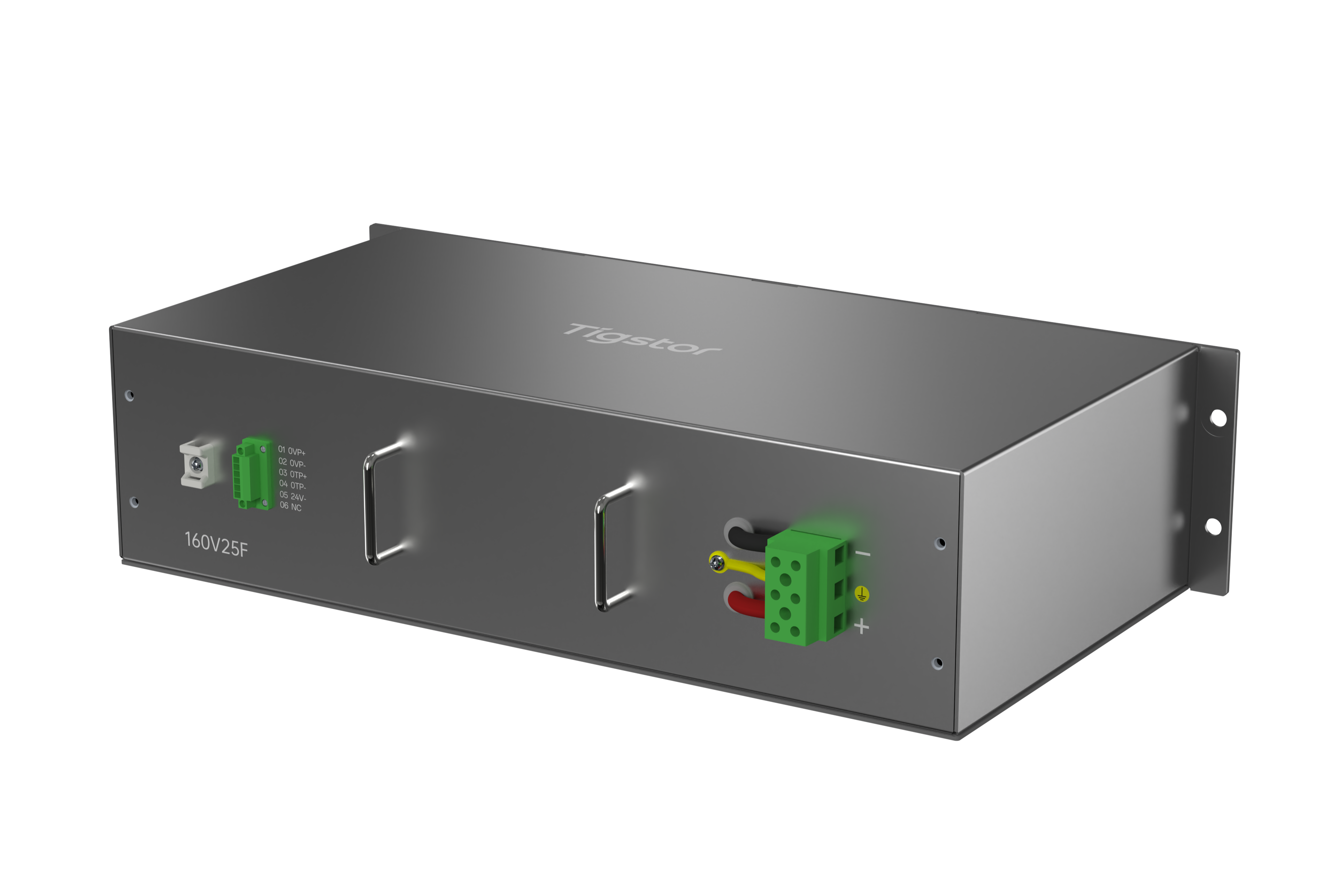

160V 25F Supercapacitor Module
Product Type:
Supercapacitor Module
Energy Storage Solutions
160V 25F
Product Features
Low ESR & High Power
Ultra-low internal resistance delivers strong power output for heavy industrial and wind power applications.
Ultra-long Cycle Life
Up to 1,000,000 cycles, greatly extending service life and reducing replacement costs.
Wide Operating Temperature Range
Stable performance from -40℃ to +65℃ for harsh environments.
Passive Balancing
Built-in passive balancing ensures consistent cell voltage and safe, stable operation.
High Safety & Reliability
Excellent insulation performance and reliable protection for industrial and energy storage systems.
Technical Specifications
|
Basic product information |
Parameter |
| Nominal Capacity |
25F |
|
Nominal Voltage |
160V |
| ESR |
150mΩ |
| Pack |
21.0 kg(±0.5kg) |
|
Dimensions |
559×135 ×300mm（L ×W ×H） |
|
Vibration |
SAE J 2380 |
|
Operating Temperature Range |
-40℃~+65℃ |
|
Storage Temperature Range |
-40℃~+70℃ |
