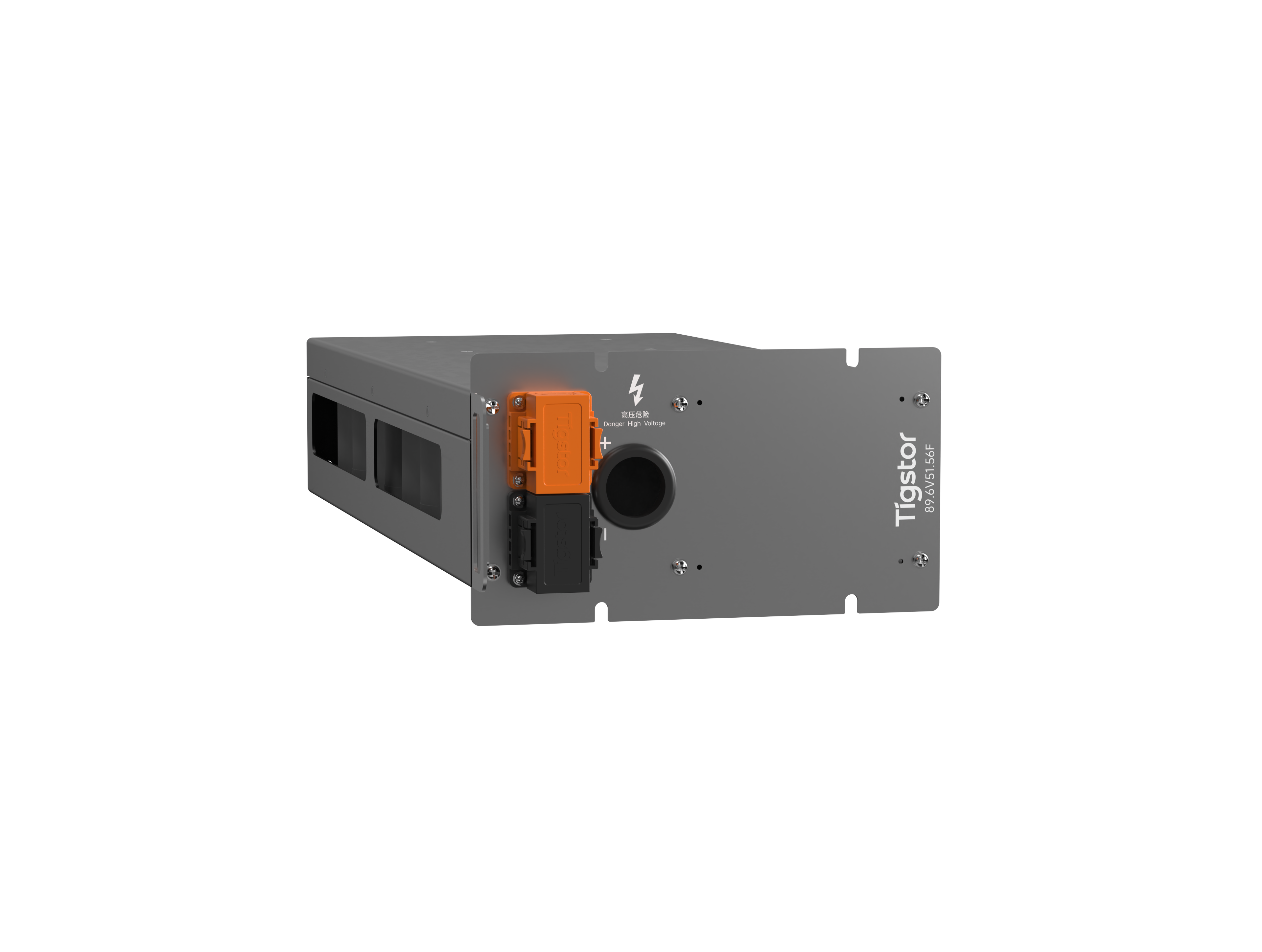

89.6V 51.56F Supercapacitor Module
Product Type:
Supercapacitor Module
Energy Storage Solutions
89.6V 51.56F
Product Features
Ultra-High Power Density
Delivers exceptional power output for fast response in hybrid vehicles and heavy-duty equipment.
Ultra-long Cycle Life
Up to 1,000,000 cycles, greatly extending service life and reducing replacement costs.
Wide Operating Temperature Range
Stable performance from -40℃ to +65℃ for harsh environments.
Real-Time Temperature & Voltage Monitoring
Built-in NTC temperature detection and multi-channel voltage monitoring ensure safe operation.
High Safety & Insulation Performance
High insulation resistance and dielectric strength provide reliable protection for high-voltage systems.
Technical Specifications
|
Basic product information |
Parameter |
| Nominal Capacity |
51.56F |
|
Nominal Voltage |
89.6V |
| ESR |
≤8.0mΩ |
| Pack |
≤22kg |
|
Dimensions |
634*325*155mm（L×W ×H） |
|
Cooling Method |
Natural Cooling |
|
Operating Temperature Range |
-40℃~+65℃ |
|
Storage Temperature Range |
-40℃~+70℃ |
