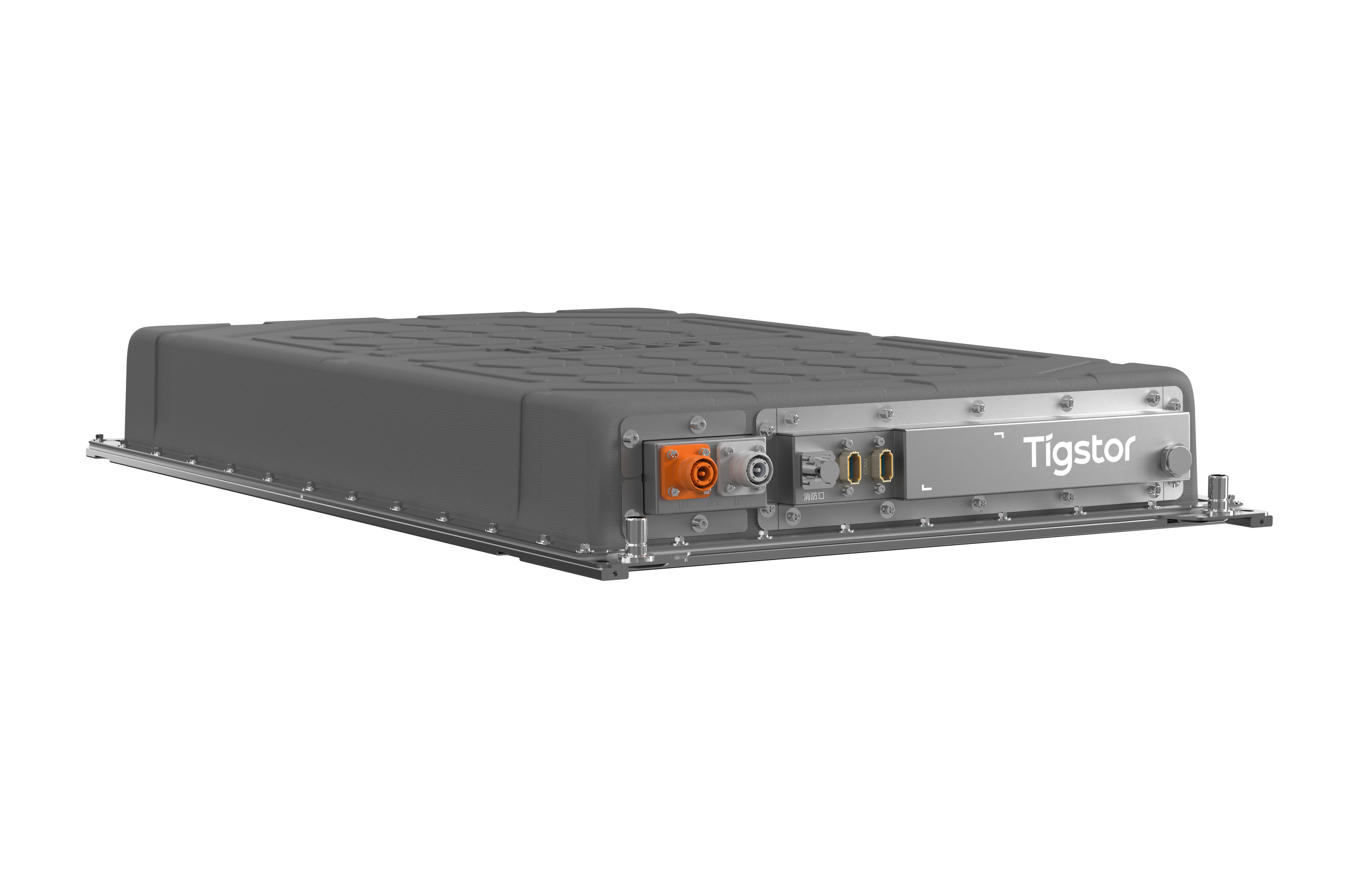

140.8V 50Ah Supercapacitor Module
Product Type:
Supercapacitor Module
Energy Storage Solutions
140.8V 50Ah
Product Features
High Power & Fast Response
Supports high-rate charge/discharge with ultra-low internal resistance for rapid grid frequency regulation.
Ultra-long Cycle Life
Up to 80,000 cycles, ensuring long service life and low total cost of ownership.
Wide Operating Temperature Range
Stable operation from -40℃ to +60℃, adapting to harsh outdoor environments.
High Protection & Liquid Cooling
IP65 rating with plate liquid cooling for safe, reliable, and continuous operation.
Designed for Grid Frequency Regulation
Ideal for primary and secondary frequency regulation in power grid energy storage systems.
Technical Specifications
|
Basic product information |
Parameter |
| Nominal Capacity | 50Ah |
|
Nominal Voltage |
140.8V |
| ESR |
≤26mΩ |
| Pack |
130kg+5kg |
|
Dimensions |
685mm(W)*1090mm (D) *137mm(H) |
|
Cooling Method |
Plate Liquid Cooling |
|
IP Rating |
IP 65 |
|
Operating Temperature Range |
-40℃~+65℃ |
|
Storage Temperature Range |
-20℃~+45℃ |
