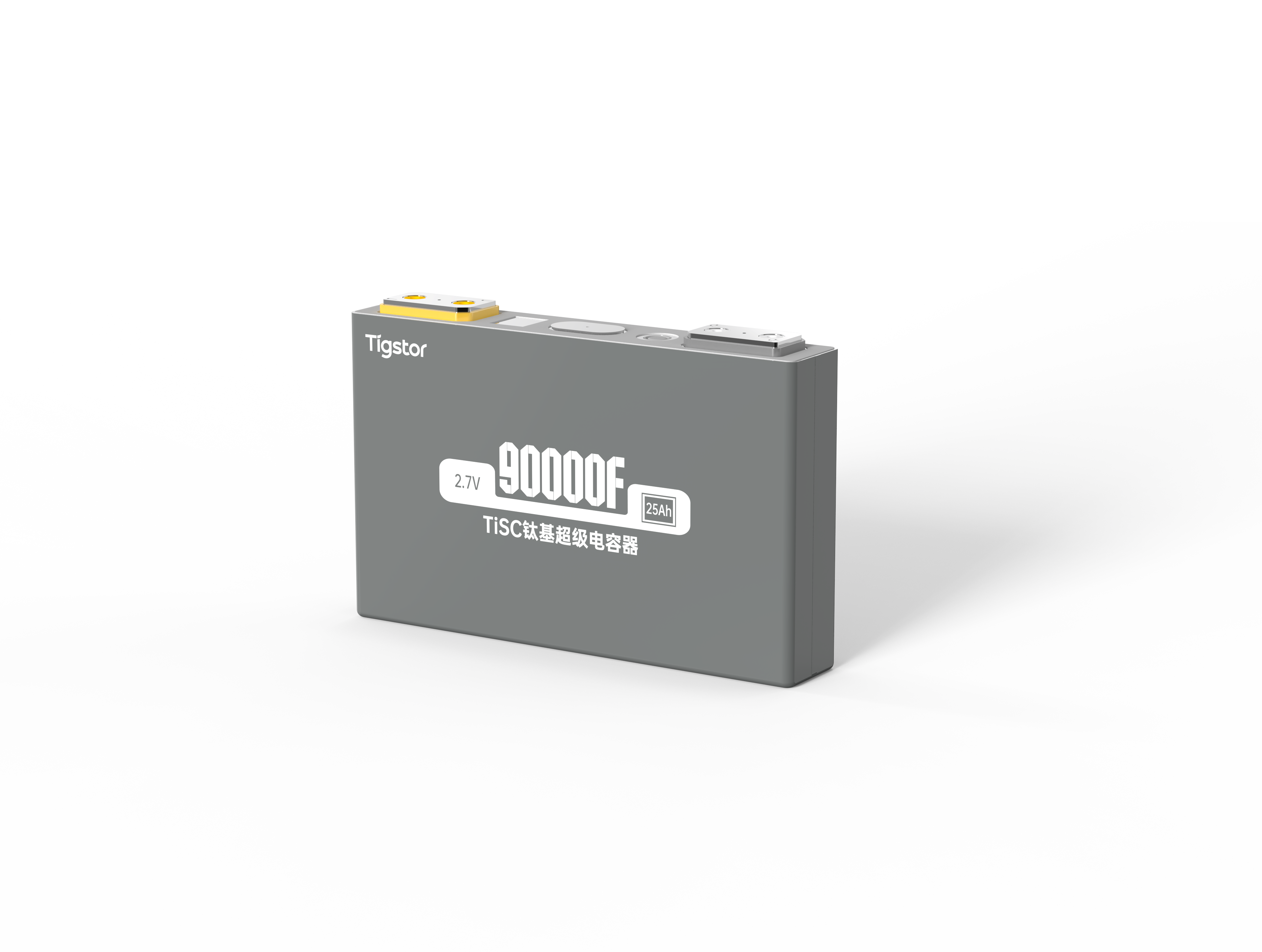

2.7V90000F
Product Type:
10C magnification x 76Wh/Kg high-energy
Vertical energy storage system
Supercapacitor system
Product Features
10C magnification x 76Wh/Kg high-energy
Capable of supporting the instruction requirements for secondary frequency modulation
Wide temperature range of 30 ℃ -65 ℃
Breaking through installation area limitations
Exceeding 100000 cycles of lifespan
Improving unit Kp performance and increasing revenue
Non active lithium
Meets national safety testing standards requirements
Technical Specifications
| Basic product information | Parameter |
| Rated Capacity | 90000F |
|
Voltage Range |
1.5~2.7V（≥0℃） 1.2~2.7V（＜0℃） |
|
DCR (initial 10s) |
≤0.7mΩ |
|
Rated Current |
125A |
|
Rated Energy |
48Wh |
|
Operating Temperature Range |
-40℃~+60℃ |
|
Storage Temperature Range |
-20℃~+45℃ |
|
Dimension（thickness × width × height） |
27.0*148.4*91.4 |
|
Mass |
750g±20g |
