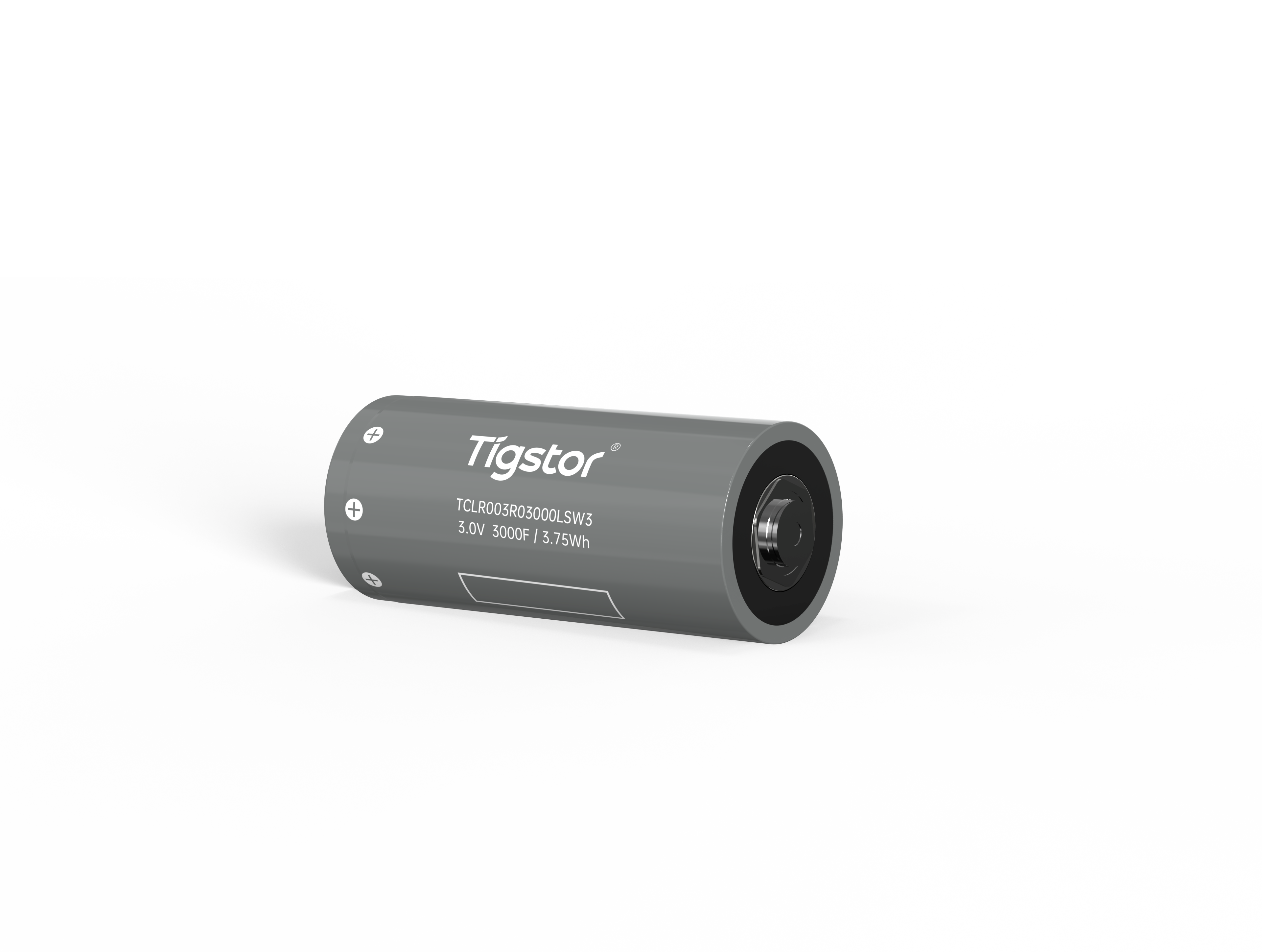

3.0V3000F
Product Type:
Electric Double-Layer Supercapacitors
Second-level Frequency Regulation Solution
Eliminates lifecycle high-cycle pain points
Product Features
1200C Rate × 0.7ms Response
Boosts unit response & regulation capability
1,000,000+ Long Service Cycles
Lower grid penalty costs
-40°C ~ 65°C Wide Temperature Range
Flexible deployment across all regions
Inherently Safe Physical Storage
The total weight of the machine is ≤ 3.7kg, with a 77.5mm ultra-thin body that perfectly adapts to the flat space layout of the entire vehicle, and has high installation flexibility
Technical Specifications
| Basic product information | Parameter |
|
Rated Capacitance |
3000F |
|
Voltage Range |
3.0V |
|
Maximum DCR (initial) |
≤2.0mΩ |
|
Operating Temperature Range |
-40℃~+65℃ |
|
Storage Temperature Range |
-40℃~+70℃ |
|
Dimension（diameter×height） |
φ60.7*138.0mm |
|
Mass |
≤520g |
